Ecler VIDA-48Q: Dante™/AES67 Digital Amplifier with DSP & Player

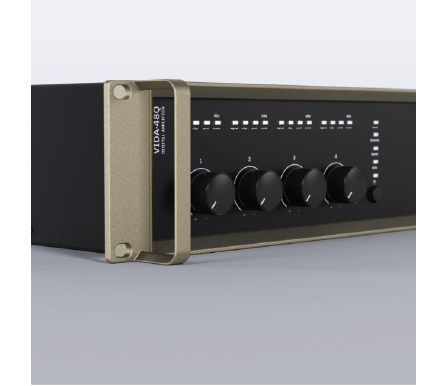

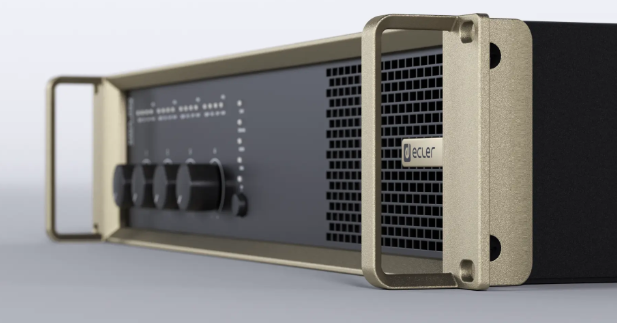

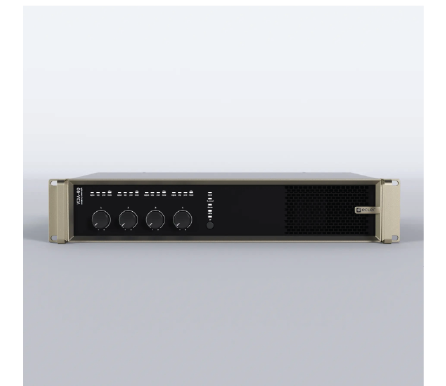

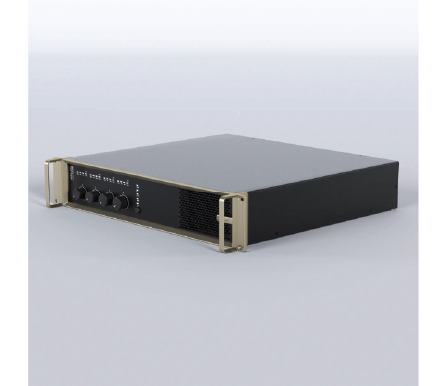

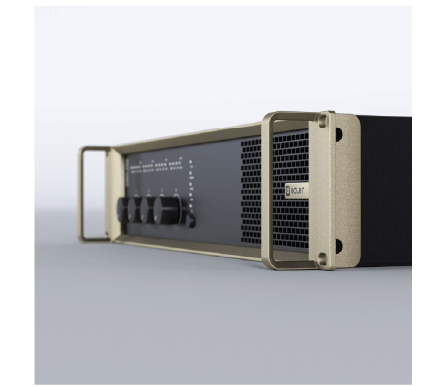

VIDA-48Q is a 4800W digital amplifier, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance. The VersaPower technology, developed by Ecler, allows an asymmetrical power distribution, and thanks to the Smart VersaPower tool it helps installers by facilitating a smart and fast configuration.
In addition, the Class D amplification technology as well as the configurable 4-outputs auto standby and sleep mode functions, both configurable, further improve energy efficiency.

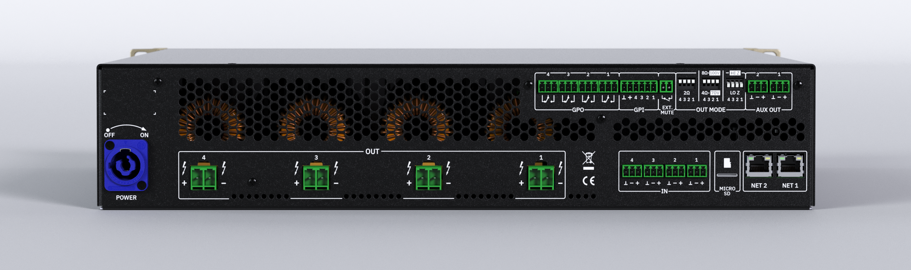

This device offers a wide range of possibilities thanks to its 4 analogue and 4 Dante/AES67 digital inputs, audio player - with microSD slot for local audio files – as well as signal generator, plus 2 auxiliary line outputs and 4 Dante/AES67 digital outputs.
All these features are managed from its intuitive web application which, among other functionalities, allows signal routing - matrix -, audio signal processing - such as equalisation or limiters -, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content, thus facilitating the start-up of the audio-visual installation, its maintenance and customisation.

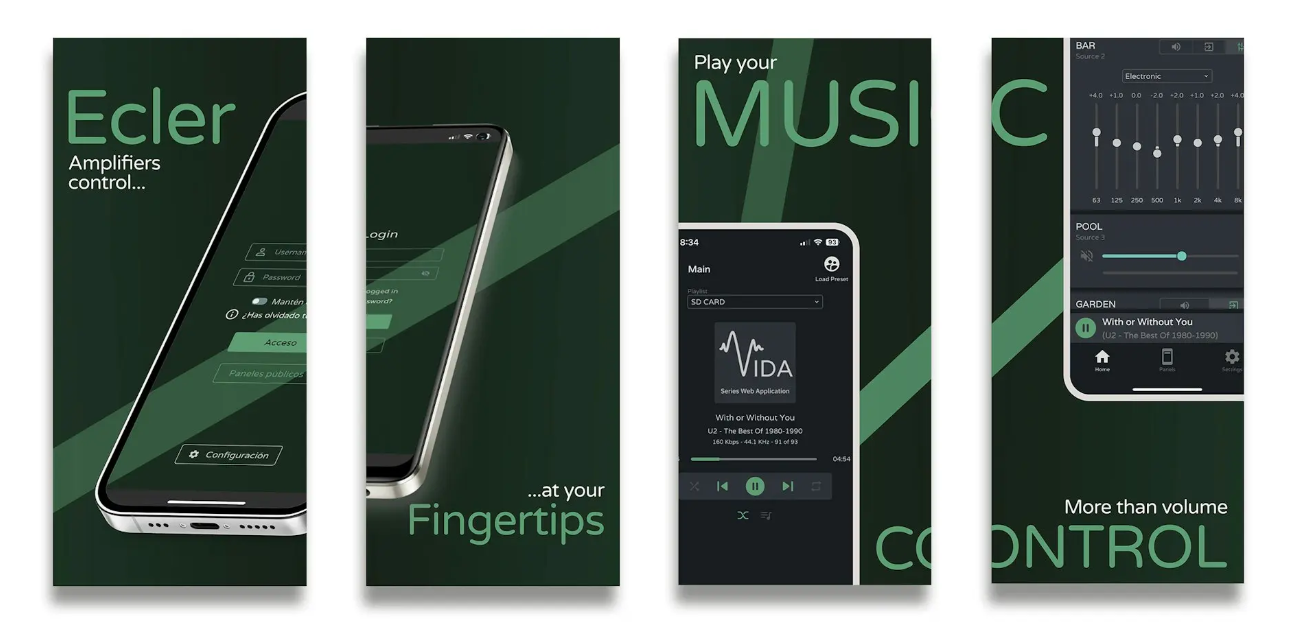

Thanks to the Android/iOS/Web application available to the end user, the audio installation can be managed by them in an easy, intuitive, and customised way.
 |
|
 |
 |
Features
- 4 amplified outputs VersaPower asymmetrical 4800W power management
- 4 Dante™ outputs and 4 Dante/AES67 inputs
- 2 auxiliary outputs
- 4 analogue inputs
- MicroSD/SDHC audio player
- Internal matrix and signal processing
- Web application for device configuration
- Smart power management VersaPower
- Control and scheduled events for automation
- Customized User Panels

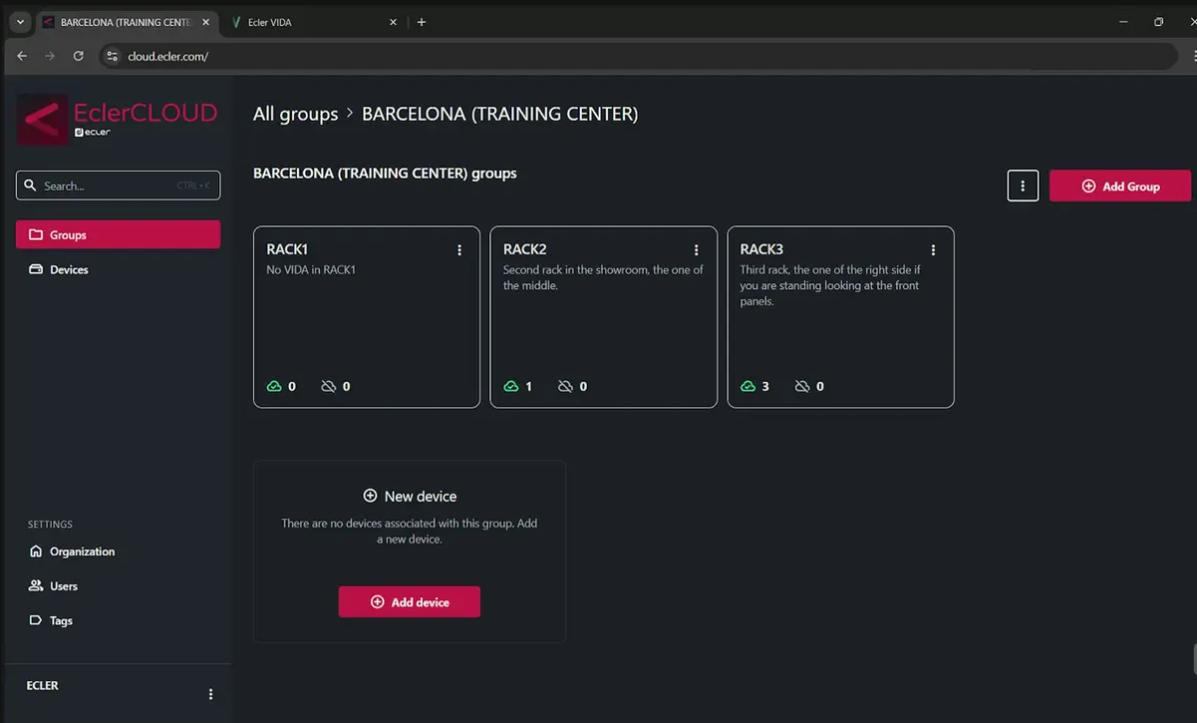

- Remote control user application for iOS/Android/Web
- Ultra low power consumption mode "Sleep Mode"
Applications
Education Corporate Leisure Sports & Wellness Hospitality
Software
VIDA Series Firmware v2.00r6 (newest firmware!)
Resources
USER MANUAL
Ecler VIDA-48Q User Manual EN.pdf
