AMBIT-16: 6.5" | 2-way | 50 WRMS | discreet design
Commercial Loudspeakers | Reference: CAMBIT16BK,CAMBIT16WH

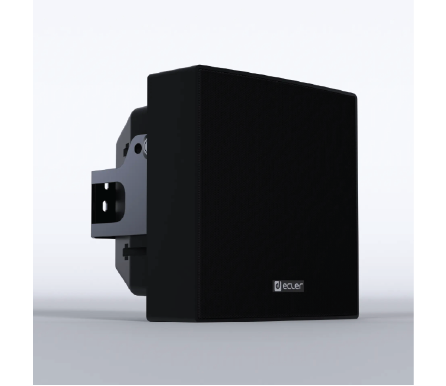

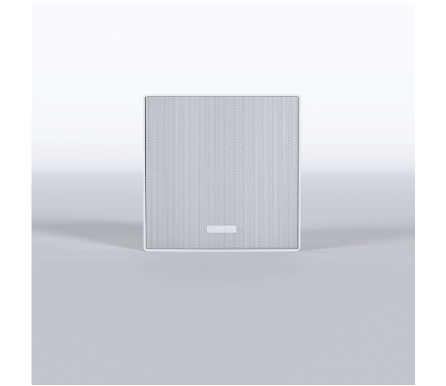

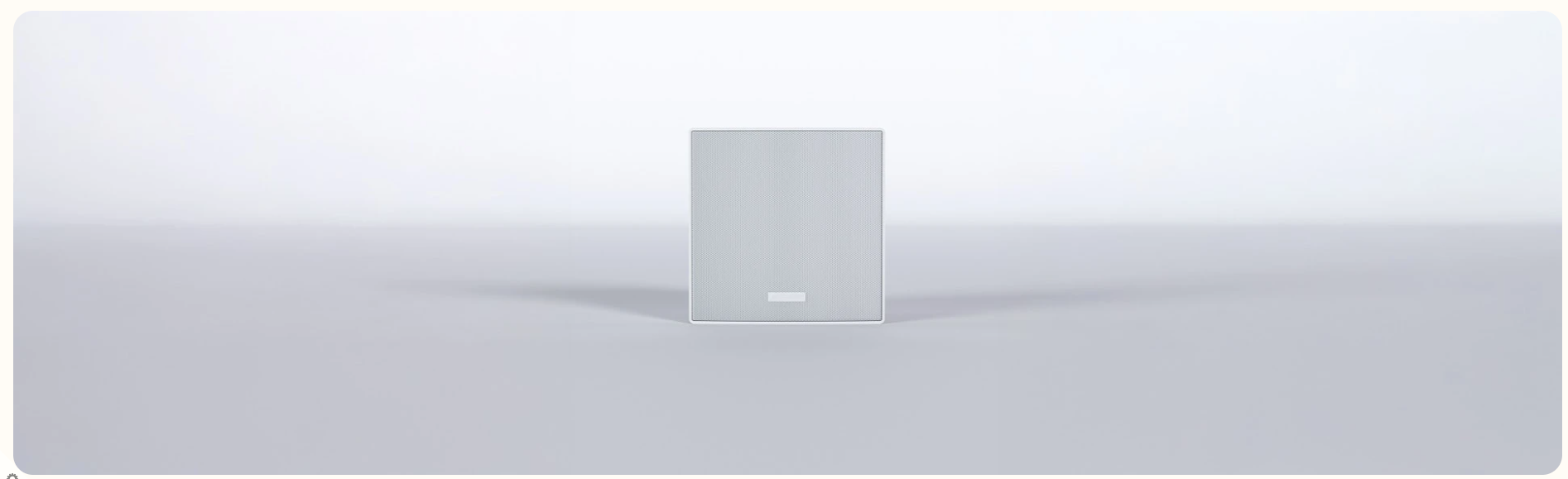

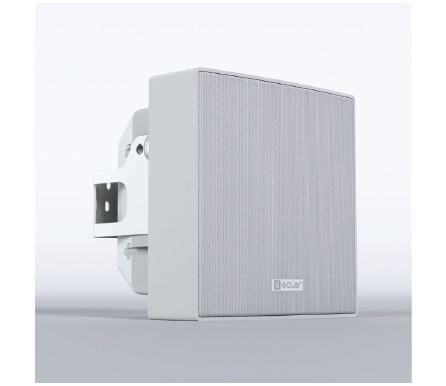

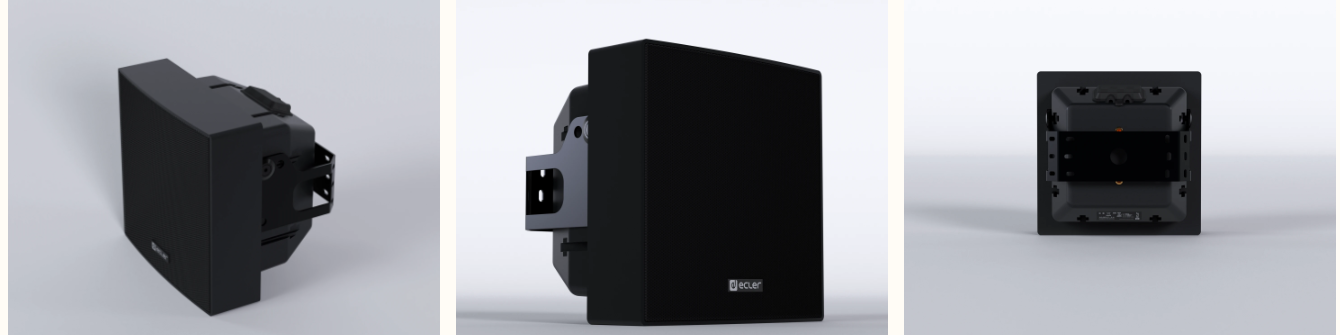

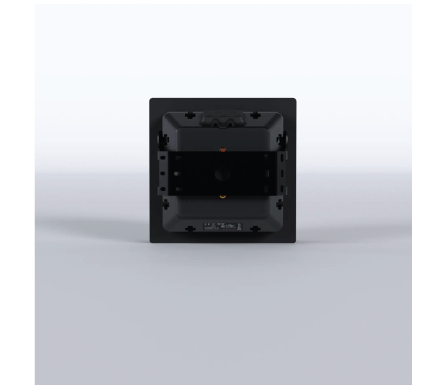

AMBIT-16 is a compact 2-way coaxial loudspeaker cabinet with neutral and discreet design. It mounts a 6.5” woofer and a 1" tweeter and it is suitable for low and high impedance lines.
AMBIT-16 is ready for indoor and outdoor applications, thanks to its aluminium grill and UV protection treatment (IP54-rated). Wall mount accessories and safety sling are included for an easy and secure installation.
Features
- ABS 2-way architectural loudspeaker
- 6,5" woofer / 1" tweeter
- Built–in audio transformer for 100V applications
- 8 Ω and 70/100V operation selector
- Available in black (RAL 9005) and white (RAL 9016) colours
- Spring loaded input terminals
- IP54 rated
- Anti UV cabinet avoids colour degradation in case of direct sunlight exposition
- Waterproof rubber cover for connectors included
Applications
Retail Education Corporate Sports & Wellness Hospitality
USER MANUAL & DATASHEET
Certificates
Ecler AMBIT-16 CE Declaration of Conformity.pdf
Tech files
Ecler AMBIT-16 Mechanical Diagram.pdf
Ecler AMBIT-16 Mechanical Diagram.dft
