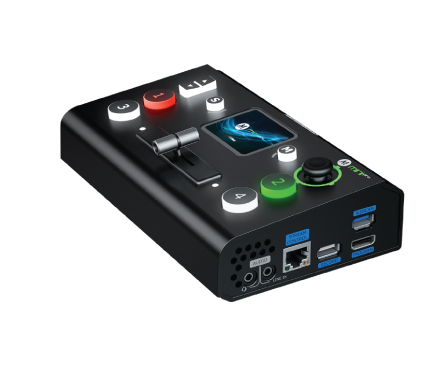

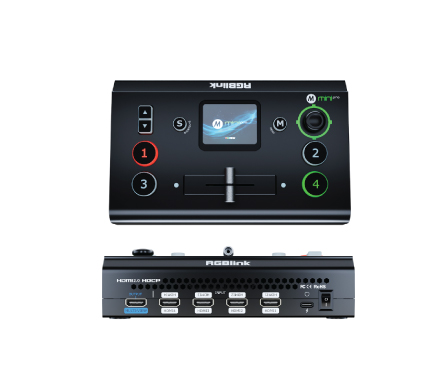

mini-pro V3: The 3rd Generation of mini Streaming Switcher

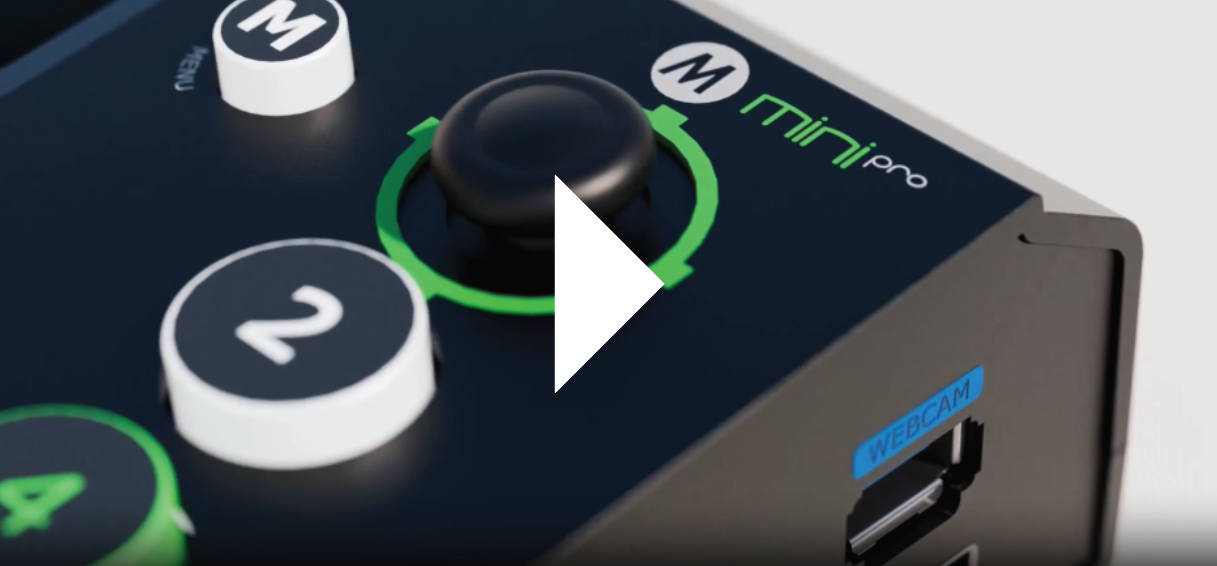

The classic and compact "SWITCH" five-way joystick is the feature of the RGBlink mini-pro, which has adhered to a user feedback-driven product iteration since 2021, emphasizing a “responsive” design philosophy.


The third-generation live streaming switcher mini-pro builds on the foundations of the first and second generations and adds an additional HDMI output without increasing the overall dimensions. This enhancement allows for simultaneous multi-screen monitoring while providing the capability for PGM Program output display and independent input selection, further enhancing display flexibility.

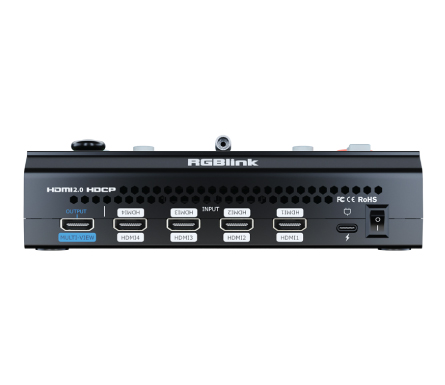

The mini-pro retains 4 HDMI 2.0 inputs, supporting a maximum resolution of 4K@60 and backward compatibility. In terms of audio, the mini-pro has undergone a comprehensive hardware upgrade, utilizing a fully differential true balanced DAC circuit architecture that effectively improves the audio quality of both MIC and LINE inputs.

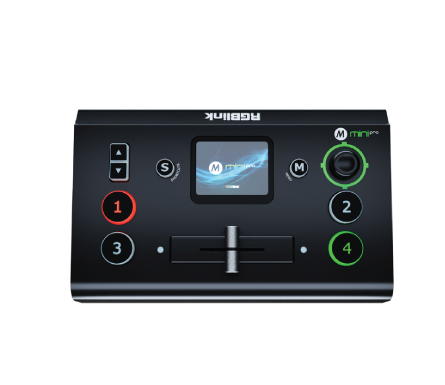

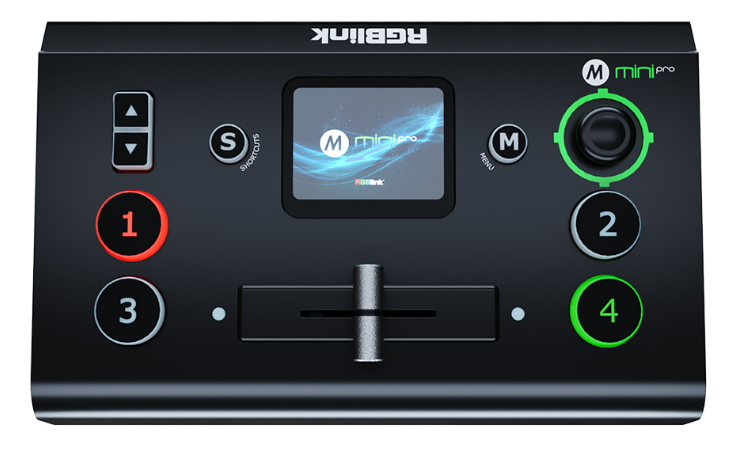

The mini-pro features a USB 3.0 output supporting various encoding formats such as YUY2 and MJPEG. When connected to a computer, it can be automatically recognized without additional drivers, which facilitates streaming on platforms like Facebook, YouTube, ZOOM,TikTok etc. mini-pro features a 2.1-inch full-color IPS touch screen with an icon-based touch menu management system, paired with the classic five-way joystick and toggle, allowing for smoother and more convenient control during layer movement, aspect ratio adjustments, PTZ control, Chroma Keying, and PIP operations.

Additionally, the mini-pro introduces robust network streaming capabiliys, allowing for simultaneous streaming to up to 2 platforms via RTMP(S), and supports RGBlink TAO cloud integration control, enabling simultaneous streaming to up to 32 platforms.

Beyond live streaming and control functionalities, the mini-pro supports a solid-state drive recording interface with a capacity of up to 2TB, enabling 24/7 live streaming with synchronized recording. It also maintains the capability for quick preset and mode recalls, enhancing the synchronized operation of multiple control devices, assisting you in achieving more diverse scene display applications.
control remotely with streamdeck & companion.

Key Features

  • mini and is convenient to carry
  • Built-in LCD for video preview and touch menu operation
  • Quad HDMI 2.0 inputs (HDCP 1.4 compliance), resolutions up to 4K@60>
  • Dual HDMI 1.3 outputs for monitoring of multi-view Preview, Program or AUX
  • Mix for 4-channel HDMI embedded and 2-channel external audio
  • USB 2.0 one-key recording in exFAT or FAT32 format with bitrate up to 16Mbps
  • 15 transition effects
  • AUTO and WIPE Switch mode available
  • USB output supports YUY2 and MJPEG format, which can be recognized as webcam for streaming
  • 5-direction joystick and toggle for controlling PTZ camera (IP VISCA Protocol supported)
  • Save and load PTZ presets. One-click for preset recall
  • Support RTMP(S) network streaming up to 2 platforms
  • Specify either “green” or “blue” as the key color for Chroma Key
  • TAO Cloud control, compatible with mobile devices and desktop

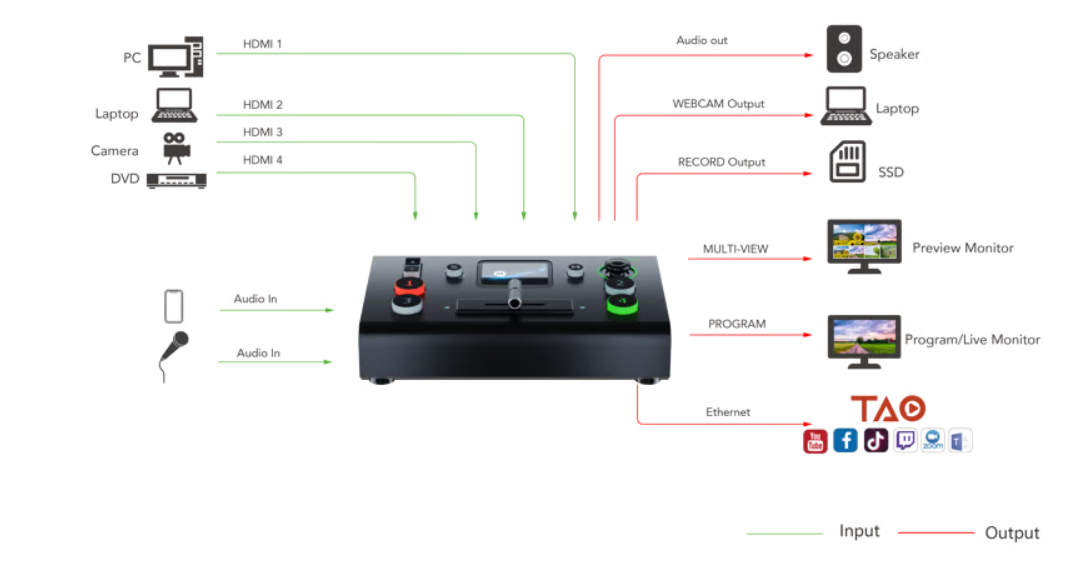

Diagram



Literature
mini-pro Product Brochure EN V1.2 9/25/2024 12:00:00 AM 1.0MB PDF
mini-pro Specification EN V1.5 8/29/2025 12:00:00 AM 855KB PDF
Documents
mini-pro v3 User Manual EN V1.6 7/14/2025 12:00:00 AM 4.0MB PDF
