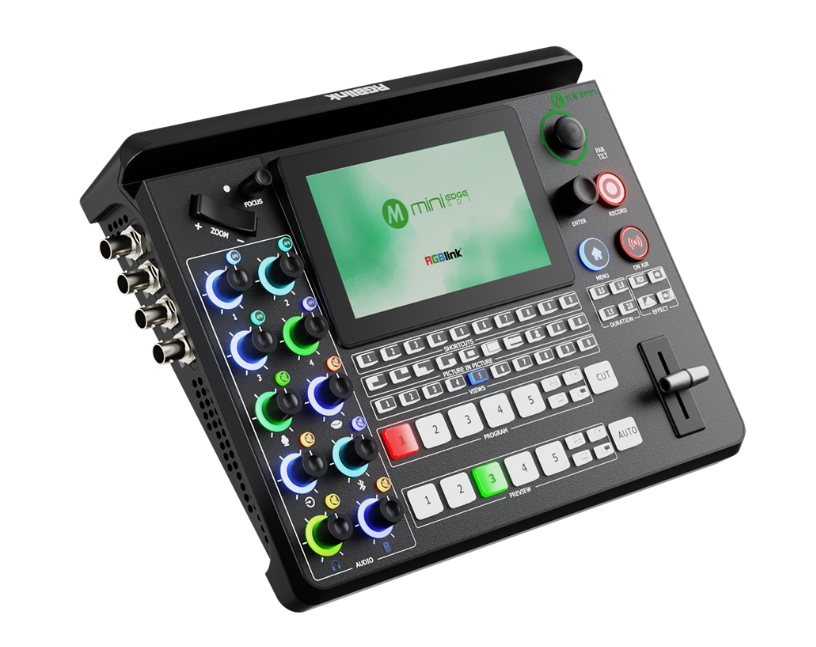

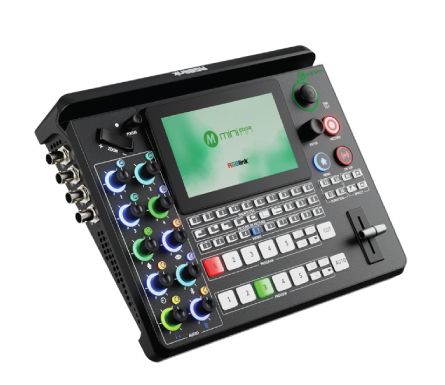

mini-edge SDI: 10-Channel Video Switcher for Live Events
Mini-edge SDI features four 4K HDMI 2.0 inputs and four 3G-SDI inputs, one UVC and one NDI bi-direction input & output, supporting digital embedded audio and video signals from PC, Camera and more. Also analog audio by 1 x Phantom,1 x Line in and 1 x Mic, and a Bluetooth audio.

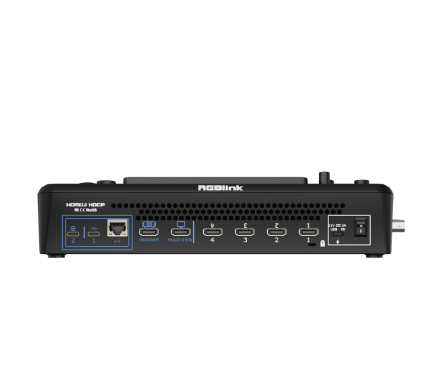

There are two separate HDMI outputs for multi-viewer Preview, Program or Test Pattern. One USB 3.0 output supports YUY2 and MJPEG capture formats, which can be recognized as a webcam for streaming to Facebook, YouTube, ZOOM, etc.
The UVC can be used bidirectionally for USB disk recording, wireless speaker and wireless microphone. This function can be applied to devices such as RGBlink AI mini. The Ethernet port with NDI license enable is bi-direction too, which ensures that the NDI encoder and decoder can work at the same time.

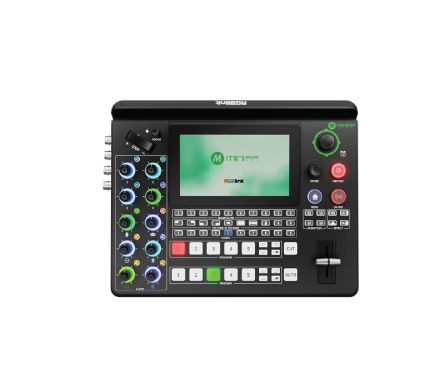

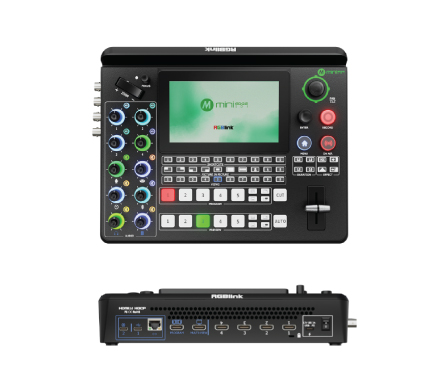

mini-edge SDI is built in with 5.5-inch TFT panel for menu operation and multiviewer video display. Compared with mini-edge, mini-edge SDI has 4 more 3G SDI inputs, a ready-to-be-licensed bidirectional NDI, and also noise reduction for audio inputs. Else it features dynamic output control, multi-view preview, picture in picture, chroma key, transitions, on board PTZ camera controls and much more.
mini-edge SDI is webAPP ready. It is also integrated with TAO Cloud for remote control and can stream to at least 4 content platforms at the same time
Key Features
- Embedded 5.5-inch monitor
- 10 input connectors ( 4 x HDMI 2.0, 4 x 3G-SDl, 2K UVC, and 2K NDI)
- 6-CH customizable video inputs
- Maximum 8 channels for audio mixing
- 2-CH independent HD HDMI
- 2K streaming and live via IP and UVC
- Streaming supports NDI | HX2
- Streaming and management via RGBlink TAO Cloud
- Manual real-time control of PTZ cameras, such as zoom in/out, rotation, and focus, via VISCA or NDI

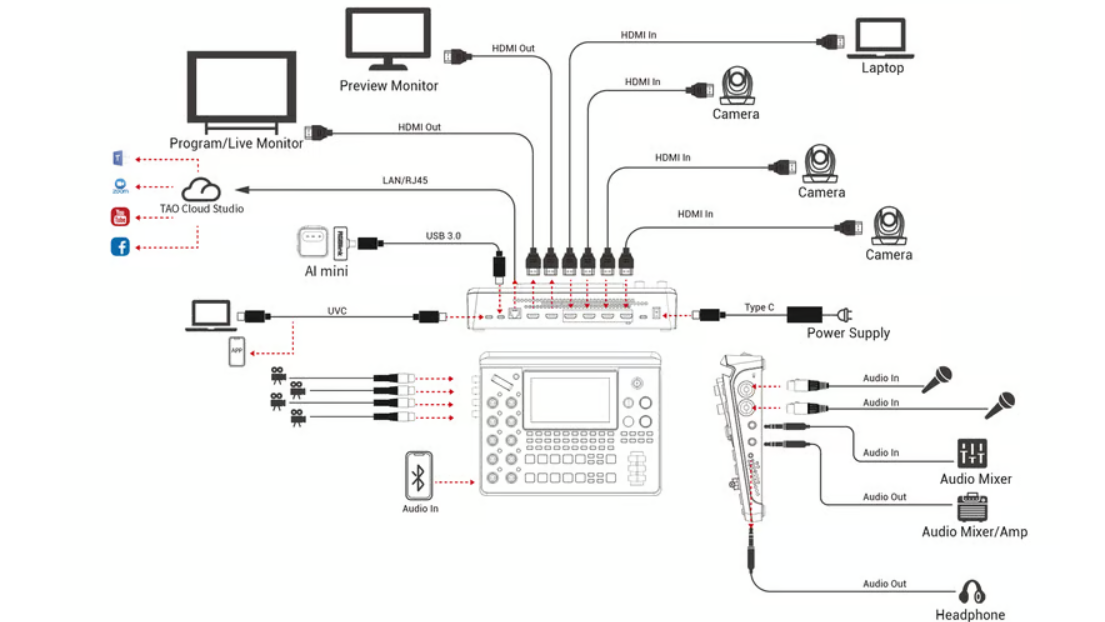

Diagram
|
Literature
|
|||||||
| mini-edge SDI | Product Brochure | EN | V1.2 | 4/17/2025 12:00:00 AM | 6.0MB |  |
|
| mini-edge SDI | Specification | EN | V1.1 | 4/17/2025 12:00:00 AM | 801KB | |
|
|
Documents
|
|||||||
| mini-edge SDI | Quick Start | EN | V1.0 | 2/25/2025 12:00:00 AM | 2.0MB | |
|
