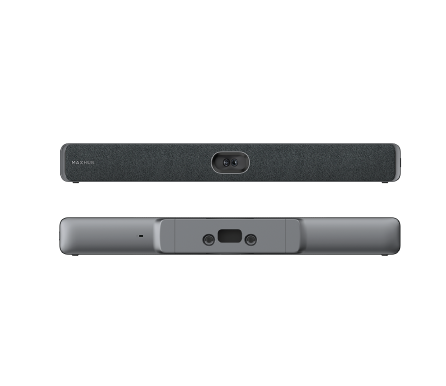

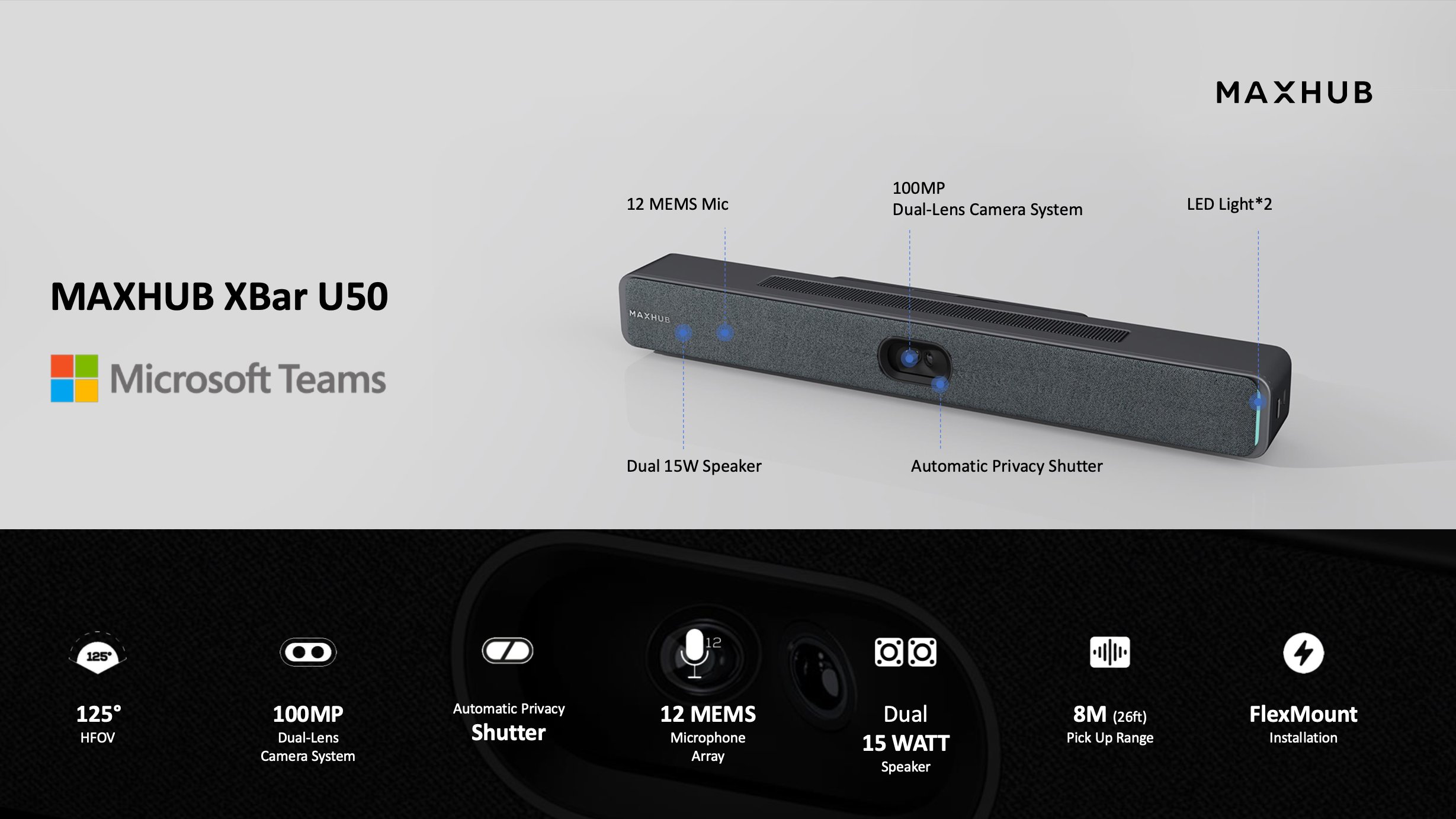

MAXHUB XBar U50: All-in-One USB Videobar for BYOD Meeting Rooms

Key Features

• 100MP Dual-Lens Camera System: Two 50MP lenses with ultra-wide 125° HFOV and 6x digital zoom ensure sharp, expansive visuals
• AI-Powered Video Intelligence: Auto Framing, Speaker Tracking, Smart Gathering, Intelligent Focus, and Video Fence for dynamic, people-focused framing
• 12-Microphone Array with AI Noise Reduction: Covers up to 8 metres with beamforming, echo cancellation, anti-reverb, and full-duplex communication
• Studio-Grade Stereo Audio: Dual 15W full-frequency speakers with 83dB SPL output for clear, room-filling sound
• Remote Monitoring via Cloud: Supports remote management through MAXHUB Pivot and device configuration via MAXHUB Align

Technical Specifications

• Camera: 2× 50MP (1/1.55" sensors), F/2.4 aperture, 125° HFOV, 6x digital zoom
• Resolution: Up to 3840×2160 (H.264/MJPEG over USB 3.0)
• AI Features: Auto Framing, Speaker Tracking, Intelligent Focus, Smart Gathering, Video Fence
• Microphones: 12 MEMS array, 8m pickup range, 48KHz sampling, -36 ±1 dBFS sensitivity
• Audio Output: 2× 15W full-range speakers, 80Hz–20kHz frequency response
• Connectivity: USB 3.0 Type-B, DC In (19V), RJ45 for expansion mics
• Power: Max 85W power consumption
• Device Management: MAXHUB Pivot (Cloud), MAXHUB Align (Local)
• Privacy Shutter: Electric and automatic lens cover

Physical Details

• Dimensions: 650.8 × 76.6 × 95.7 mm
• Weight: 2.68 kg (net), 5.4 kg (gross)
• Operating Temp: 0°C – 40°C | Humidity: 10%–90% RH
• Mounting: ADA-compliant mounting kit included

What’s in the Box

• MAXHUB XBar U50
• Power adapter and AC cable (1.5m)
• USB Type B-A cable (3m)
• Remote control
• ADA-standard mounting components
• Positioning card

📄 Download the MAXHUB XBar U50 Datasheet (PDF)
